4.9G VRX for FPV Goggles 8CH Long range FPV Video Receiver Compatible with Skyzon&Fatshark

4.9G VRX for FPV Goggles 8CH Long range FPV Video Receiver Compatible with Skyzon&Fatshark

Regular price $30.99
Regular price $42.99 Sale price $30.99
Sale Sold out
View full details

Features

  • 8CH: 4990MHz~5200MHz Receiving frequency range,8channels adjustable;Change frequency by pressing the button.
  • Simple and replaceable:Receiver compatible with interchangeable receiver goggle monitors, such as Skyzon&Fatshark FPV goggles.

    Specifications

    • Item Name: VRX 4G9
    • Receiving frequency: 8CH  (4990MHz to 5200MHz)
    • Input voltage:DC 5V
    • Current consumption: (380±40) mA@5V
    • RX Sensitivity: -90dBm
    • Voltage Standing Wave Ratio: 2:1
    • Demodulation System: FM/PLL
    • ANT. input impedance: 50Ω, Typ.
    • Video Output impedance: 75Ω, Typ.
    • Audio Ouput Frequency Range: 100Hz-20000Hz
    • RF Connector: SMA
    • Weight: 15.6g ( w/o antanna)

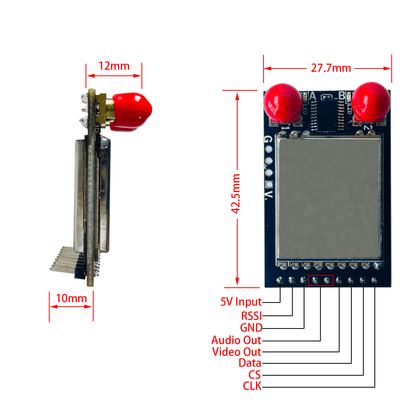

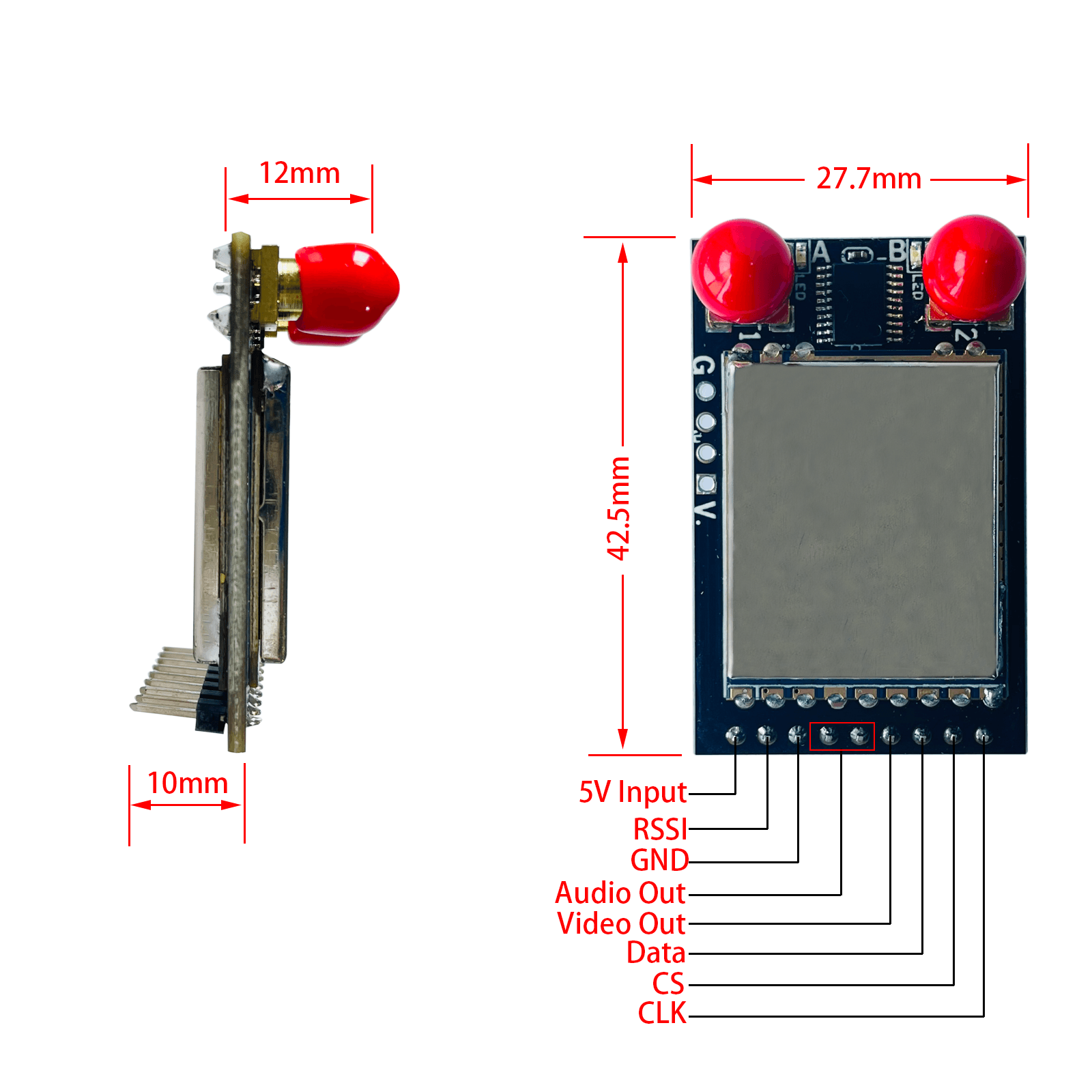

    • Size: board 42.5mm (L)*27.7mm (W)*20mm (H)

    Receiving Frequency Table

    Band/CH CH1 CH2 CH3 CH4 CH5 CH6 CH7  CH8
    X 4990 5020 5050 5080 5110 5140 5170 5200

    Package Included

    • 1 X  4.9GHz VRX
