Features
- 40CH Wide Frequency: 4990MHz~5945MHz Receiving frequency range,40channels adjustable.
- Simple and replaceable：Receiver compatible with interchangeable receiver goggle monitors, such as Jaribel 800D Pro FPV goggles.
Specifications
- Item Name: VRX5G3_4GSE
- Receiving frequency: 40CH (4990MHz to 5945MHz)
- Input voltage：DC 5V
- Current consumption: (380±40) mA@5V
- RX Sensitivity: -90dBm
- Voltage Standing Wave Ratio: 2:1
- Demodulation System: FM/PLL
- ANT. input impedance: 50Ω, Typ.
- Video Output impedance: 75Ω, Typ.
- Audio Ouput Frequency Range: 100Hz-20000Hz
- RF Connector: SMA
- Weight: 15.2g ( w/o antanna)

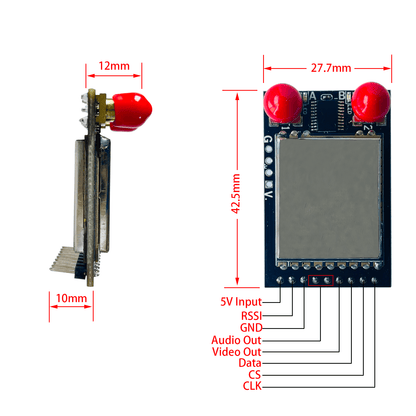

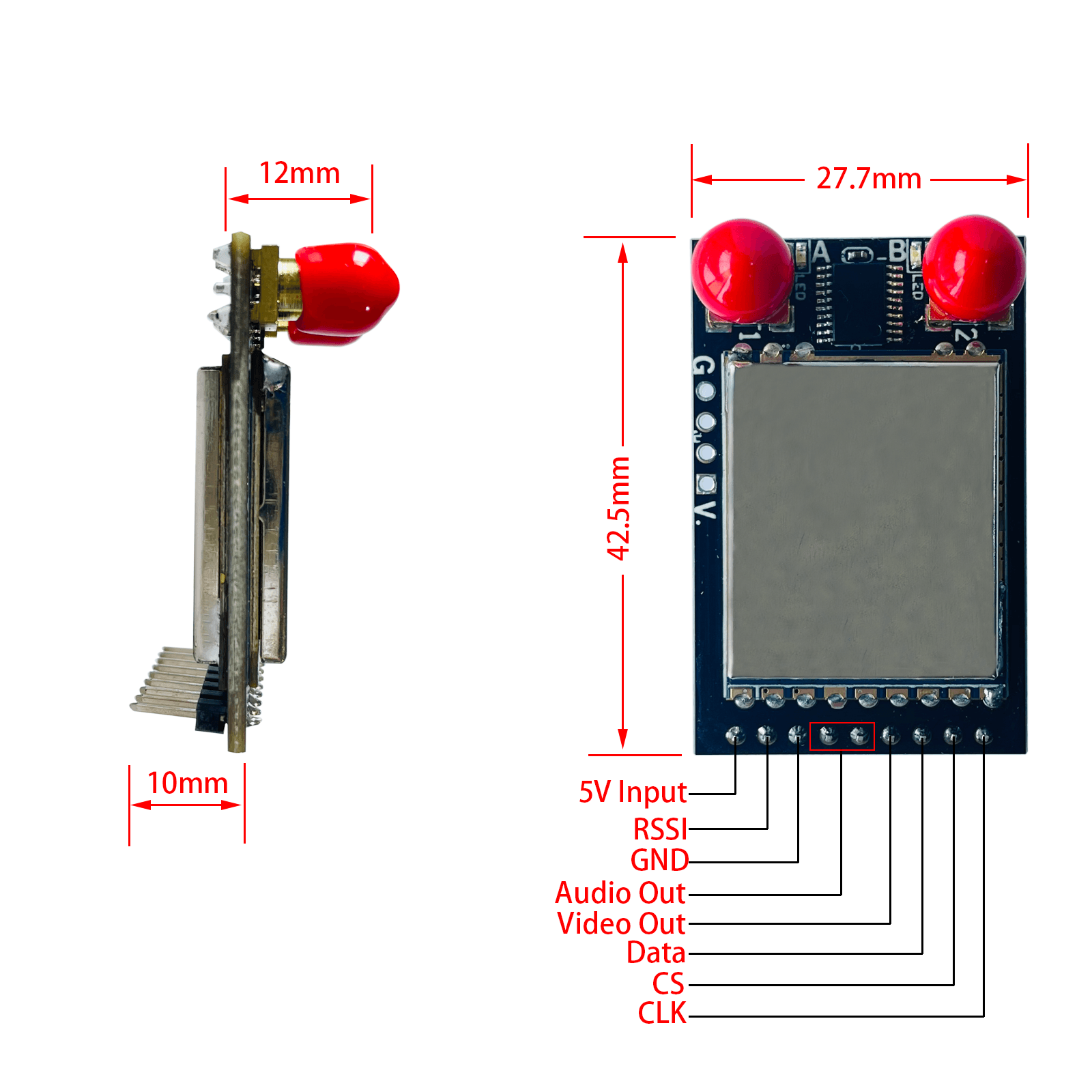

- Size: board 42.5mm (L)*27.7mm (W)*20mm (H)
Receiving Frequency Table
| Band/CH | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Package Included
- 1 X 4.9GHz VRX
