800mW FPV VTX 1G2 1.2GHz - 1.3GHz Video Transmitter(9CH,25mW/200mW/800mW, 2-8S, SMA)

Feature

• Adjustable Levels Of Transmitting Power：PIT/25mW/200mW/800/mW, switch by long pressing the button.
• Frequency Range: 9CH 1060MHz-1380MHz adjustable.

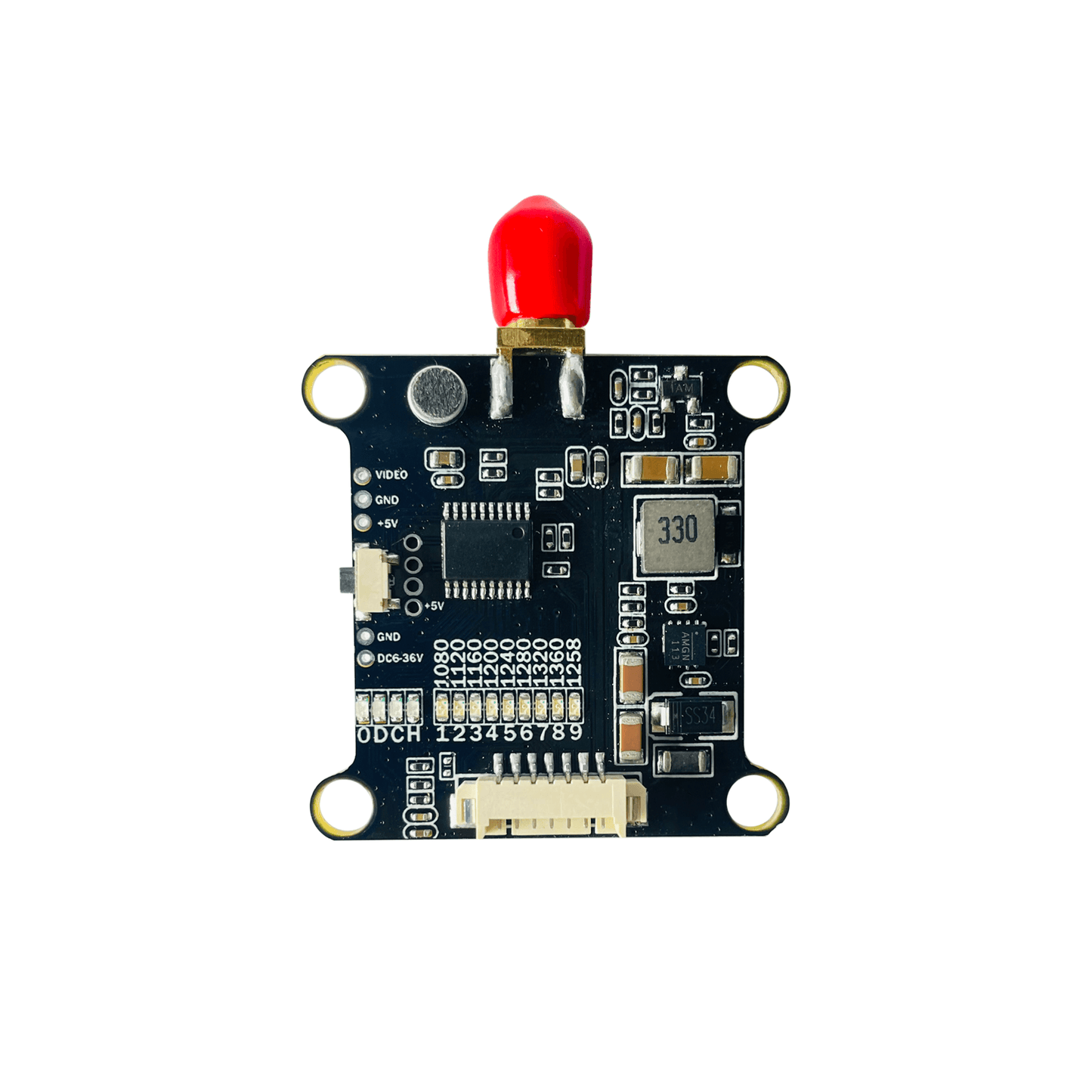

• LED indicators and buttons:More intuitive LED status reading and button adjustment. Green LED indicates the current RF power, red LED indicates the current frequency; long press the button (more than 3s) to adjust the RF power, short press the button to adjust the frequency.
• Onboard MIC: Onboard high-sensitivity MIC supports audio output.
• 7-36V DC Input：Wide voltage input of 7-36V DC, supports direct input of 2-8S batteries.
• Pit Mode: After entering the pit mode, the VTX power will be reduced to a minimum. The video feed is only visible to yourself at close range, so don't worry about disturbing others.

Specifications

• Item Name: VTX 1G2-800
• Input Voltage: 7-36V DC;2-8S
• Output Voltage: 5V 1A
• 12V Input Current: 80mA@Pitmode, 170mA@25mW, 210mA@200mW, 380mA@800mW
• Channels: 9CH (1060MHz-1380MHz)
• Power: PIT/25/200/800/mW
• Antenna connector: SMA

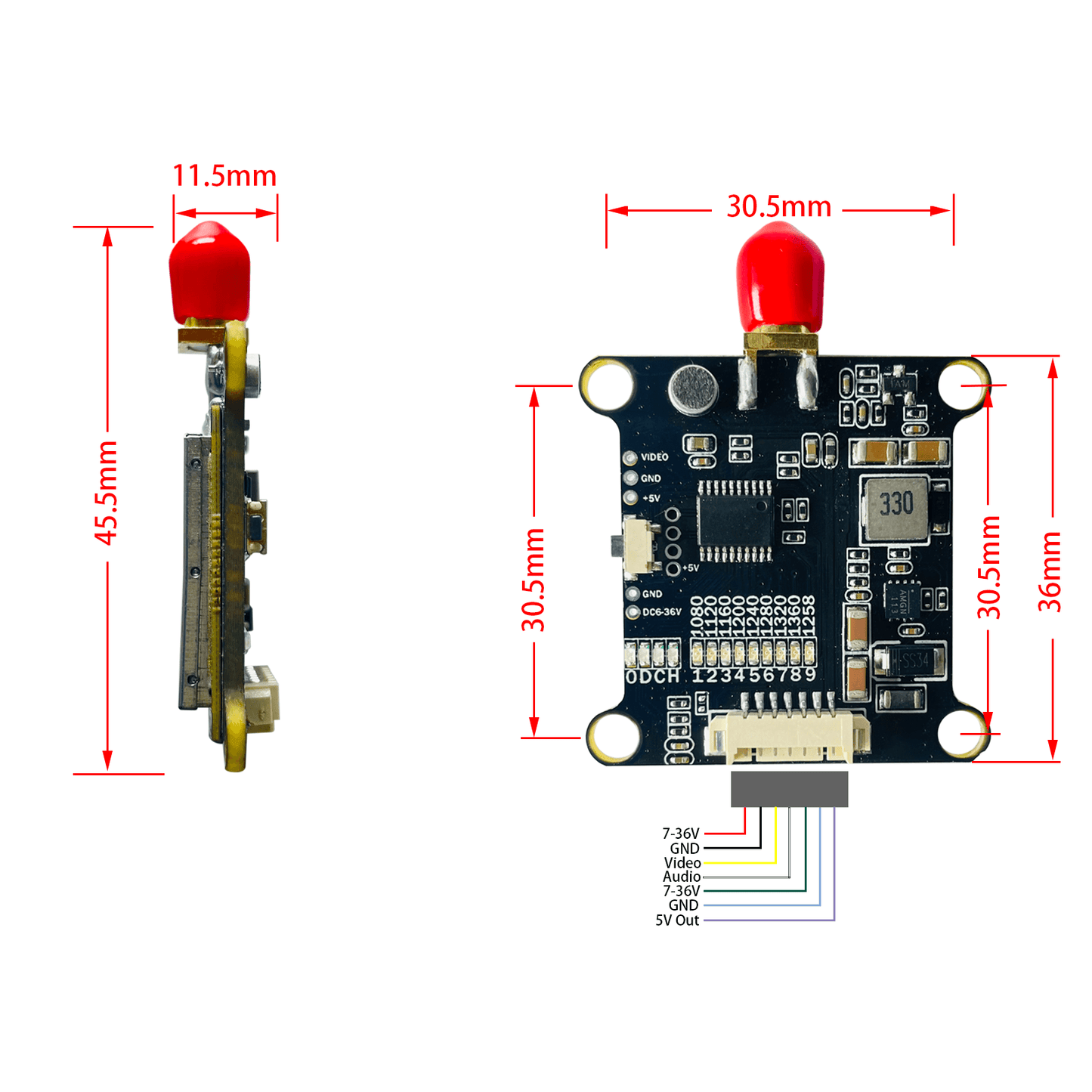

• Dimensions: 45.5*35.6*11.5 mm; 30.5*30.5mm(hole)
• Weight: 21g

Frequency Table:

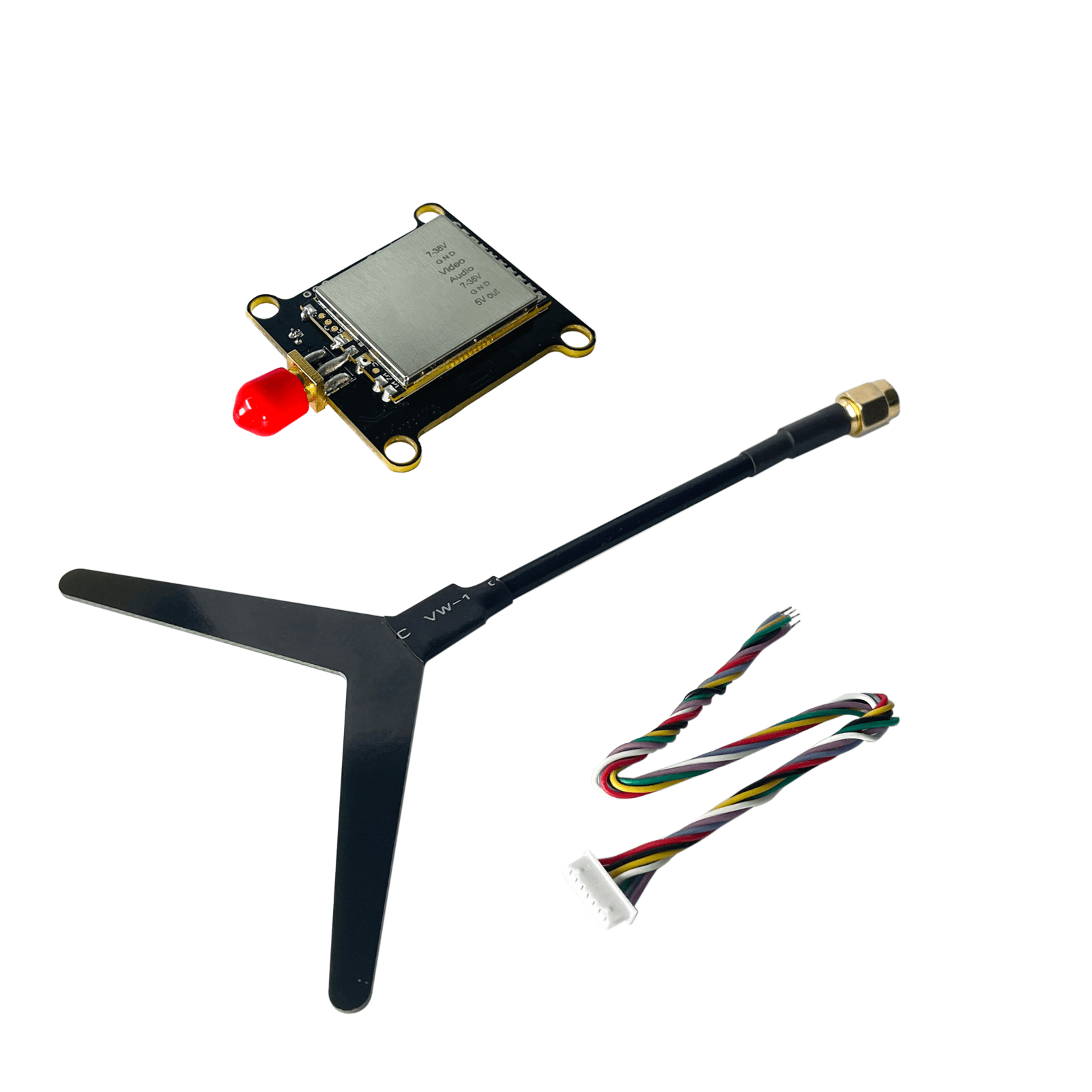

Package Included:

• 1 X 1.2GHz VTX
• 1x 7 Pin 1.25 Harness

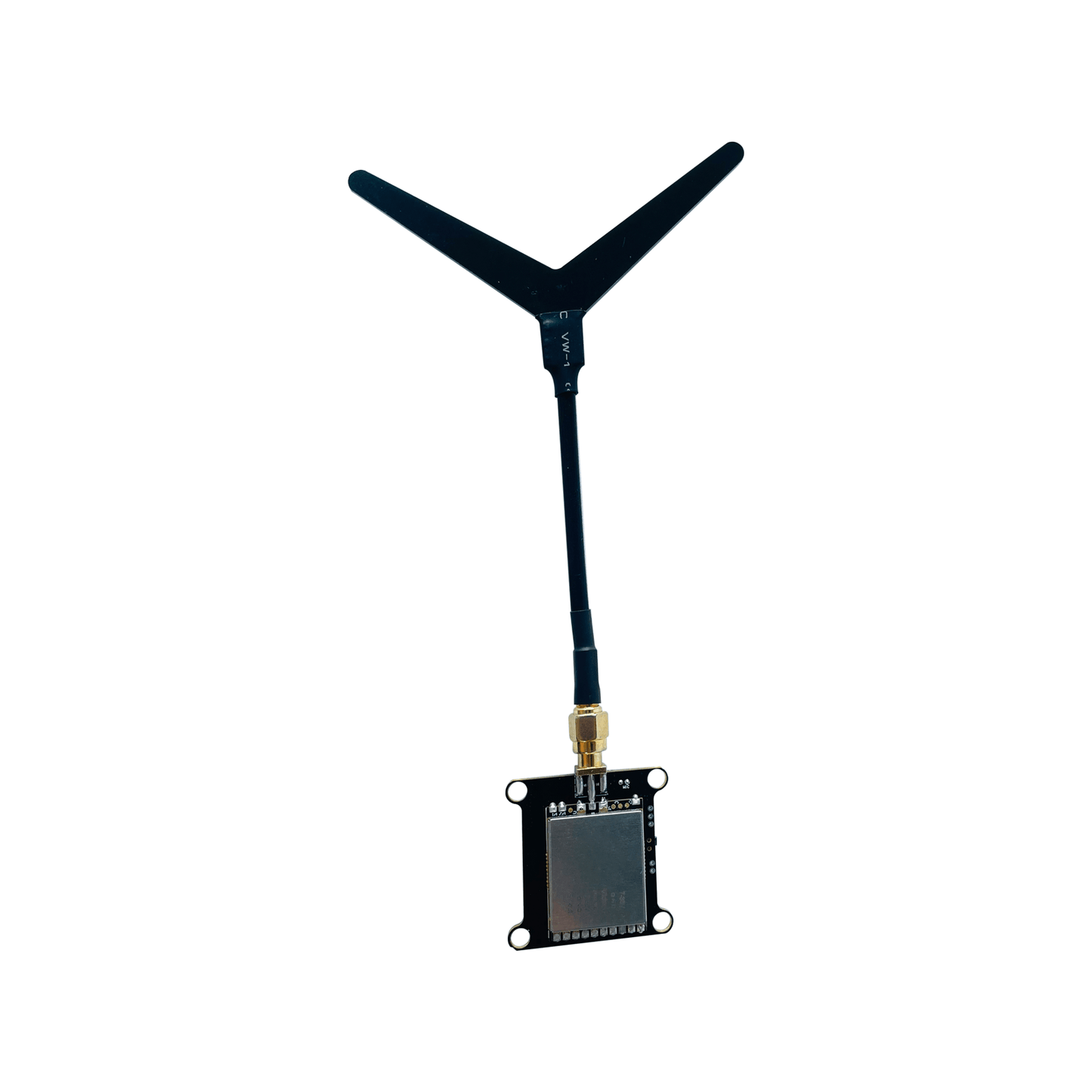

• 1x 1.2G Y-type special antenna
