Specification:

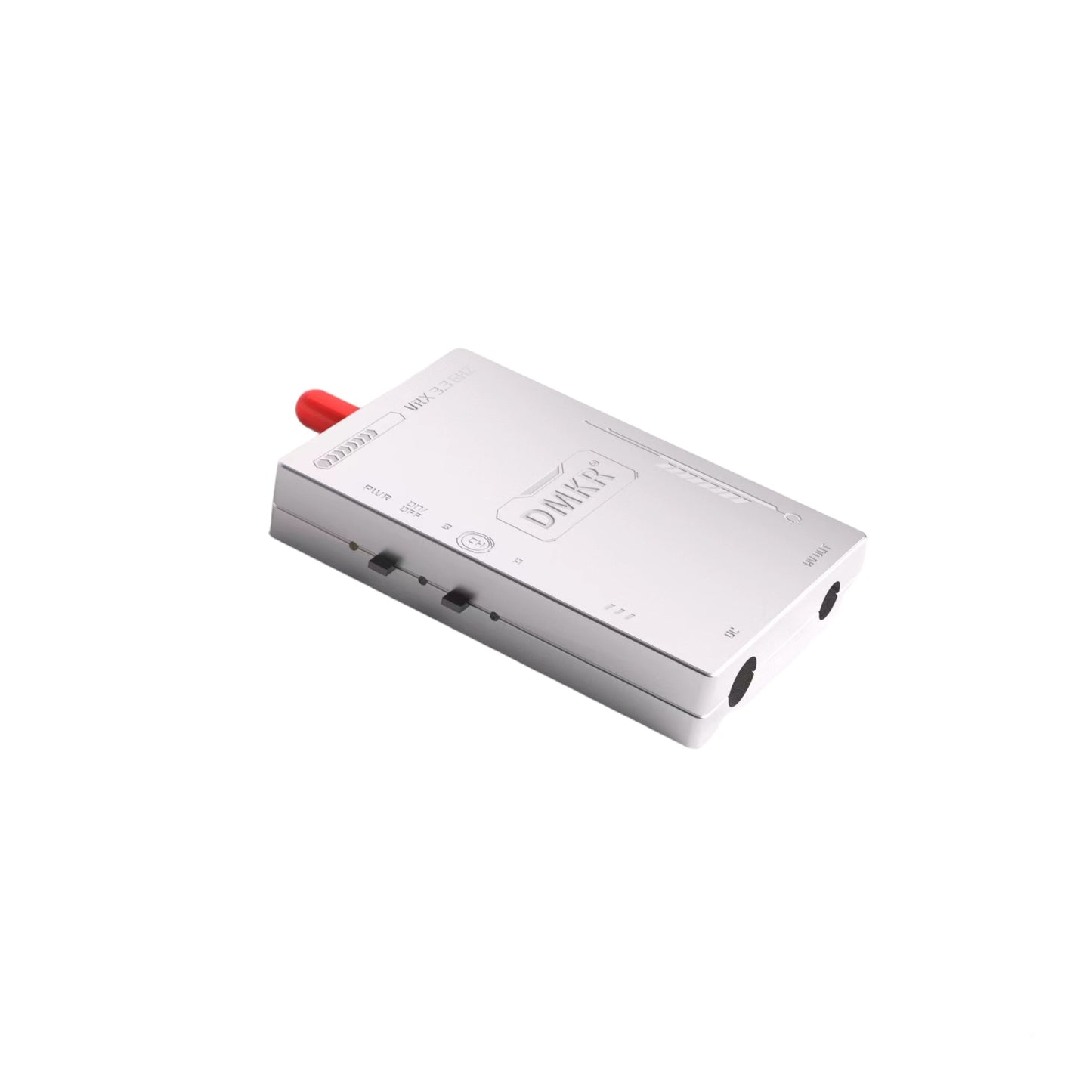

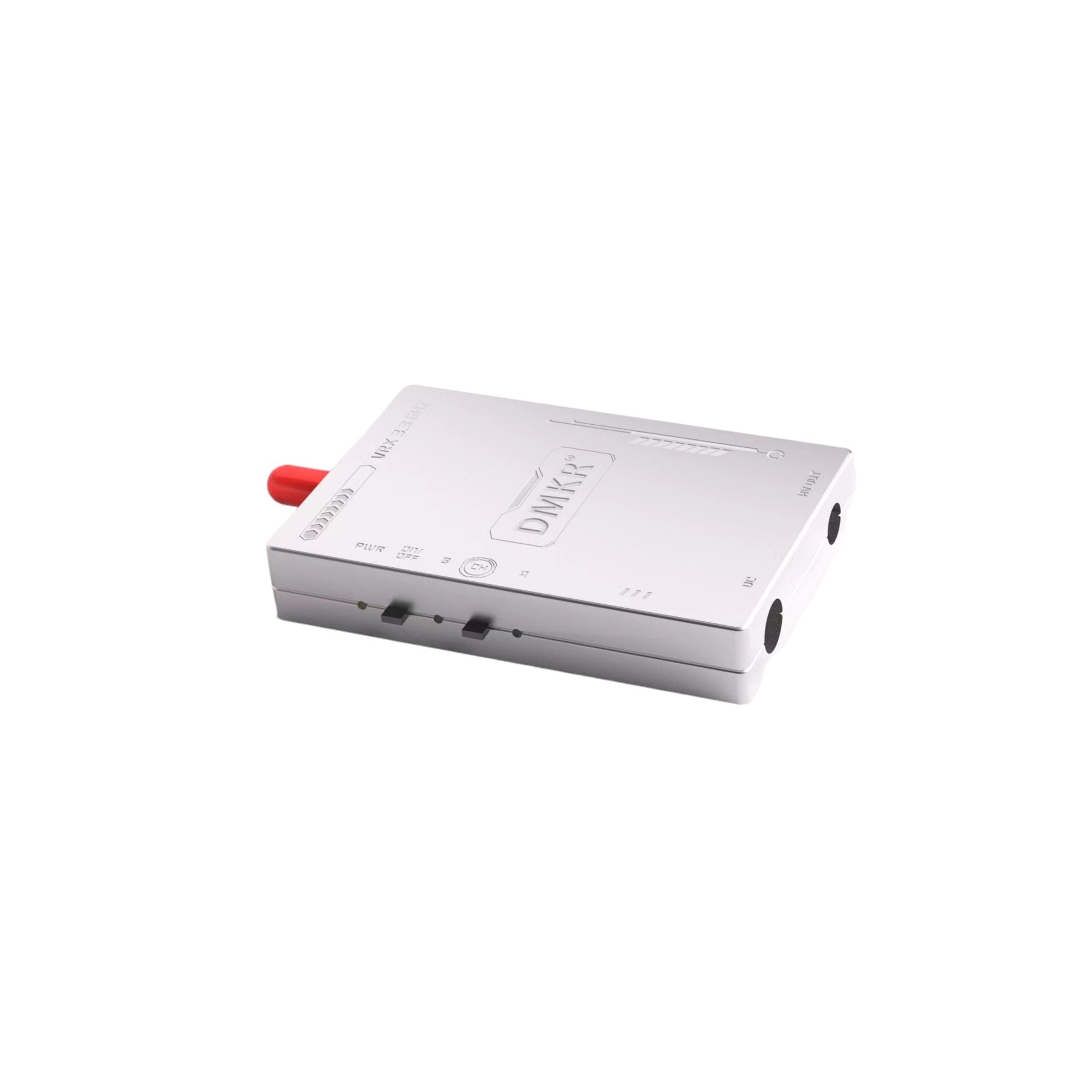

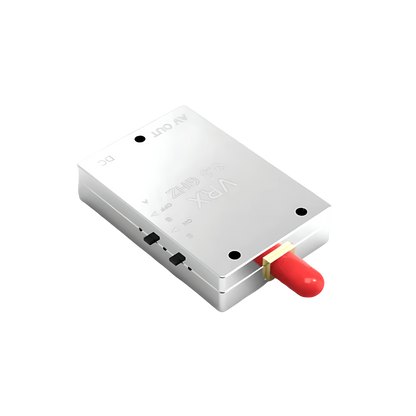

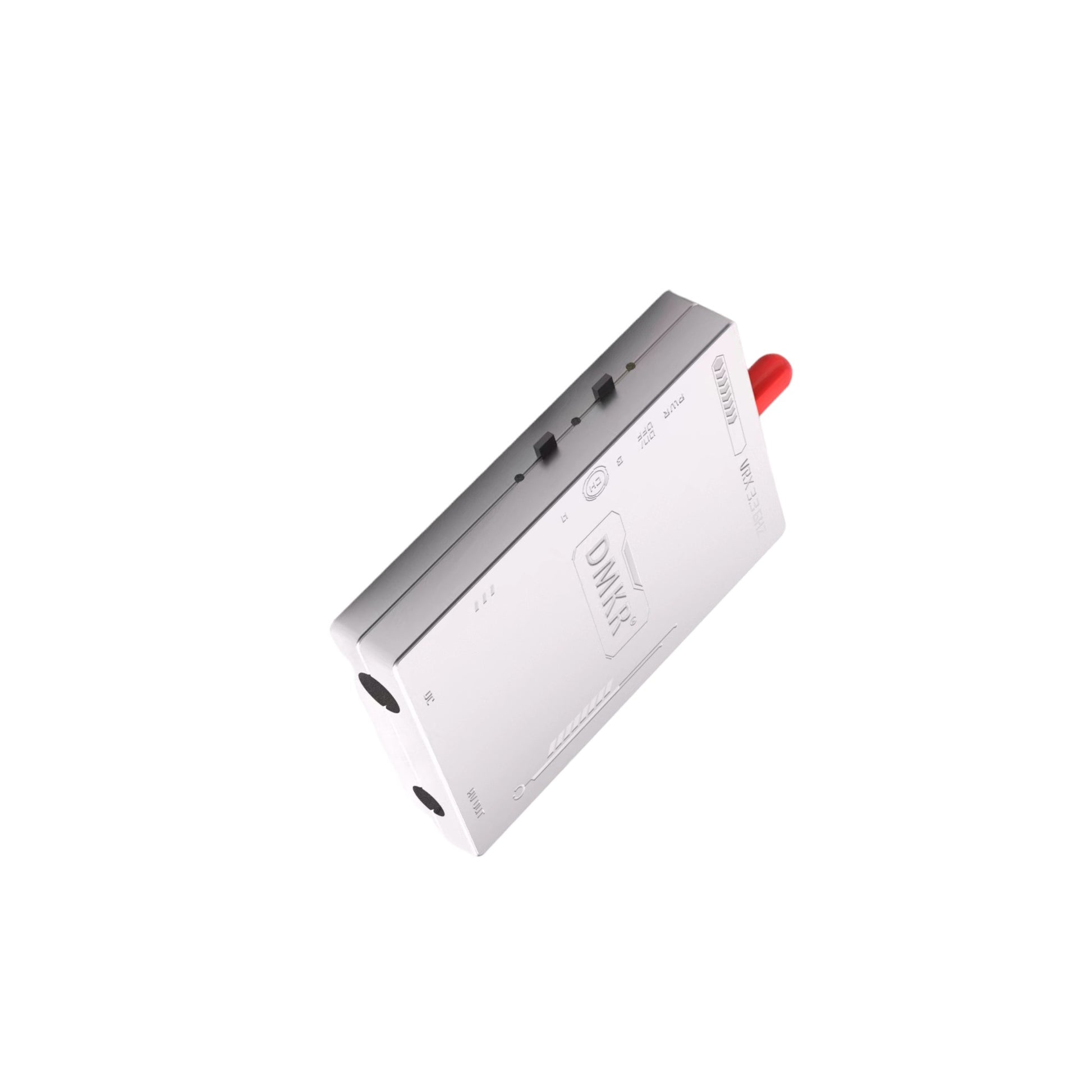

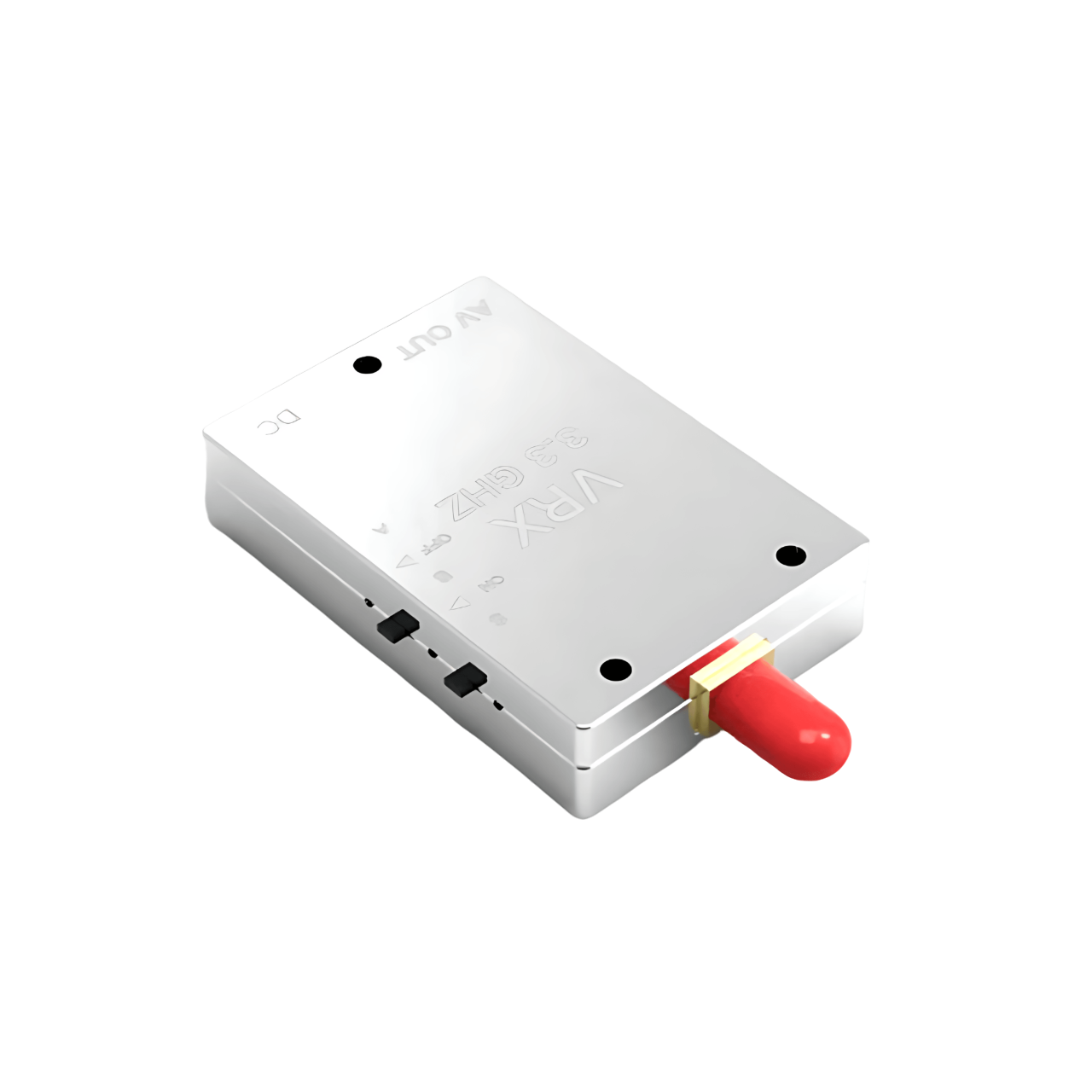

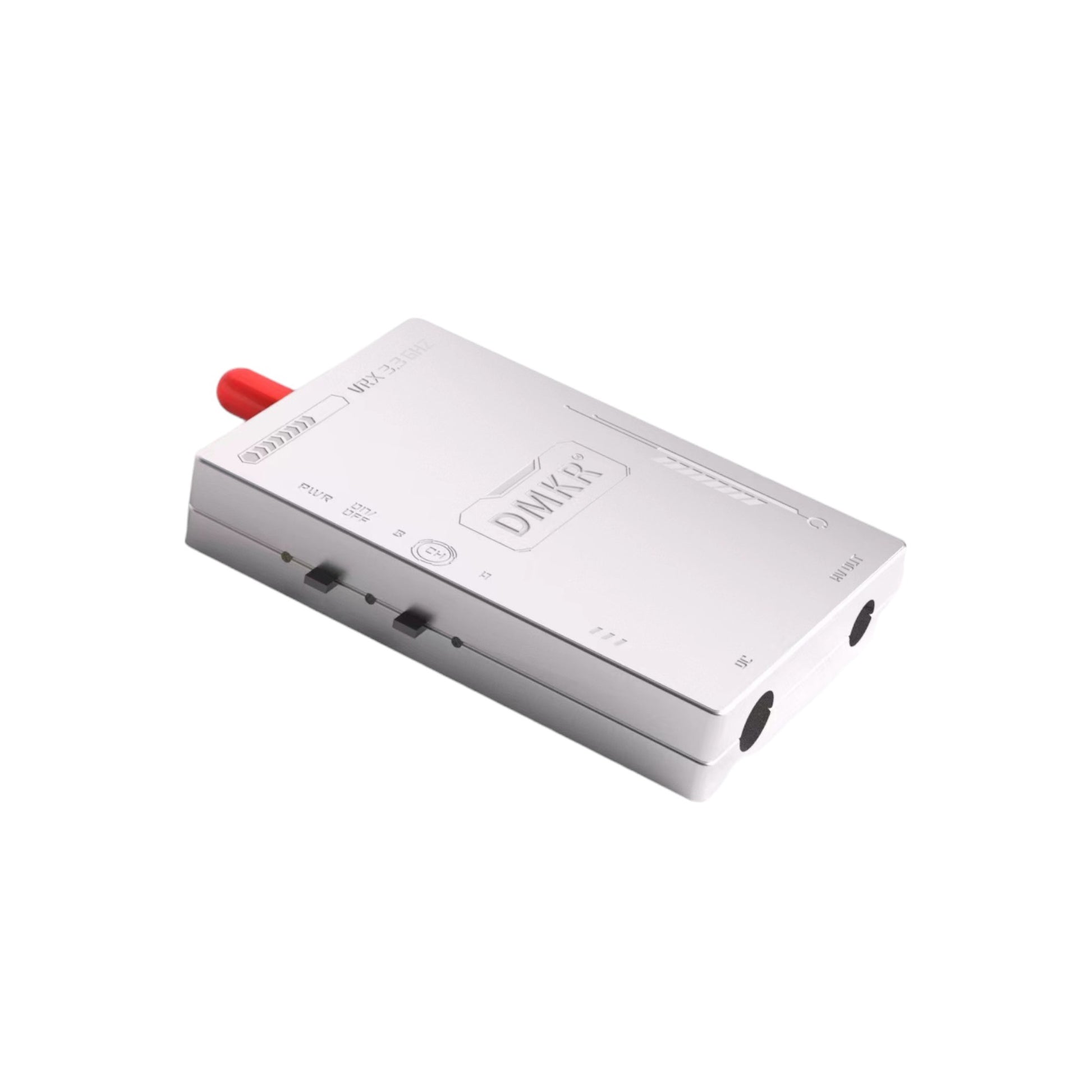

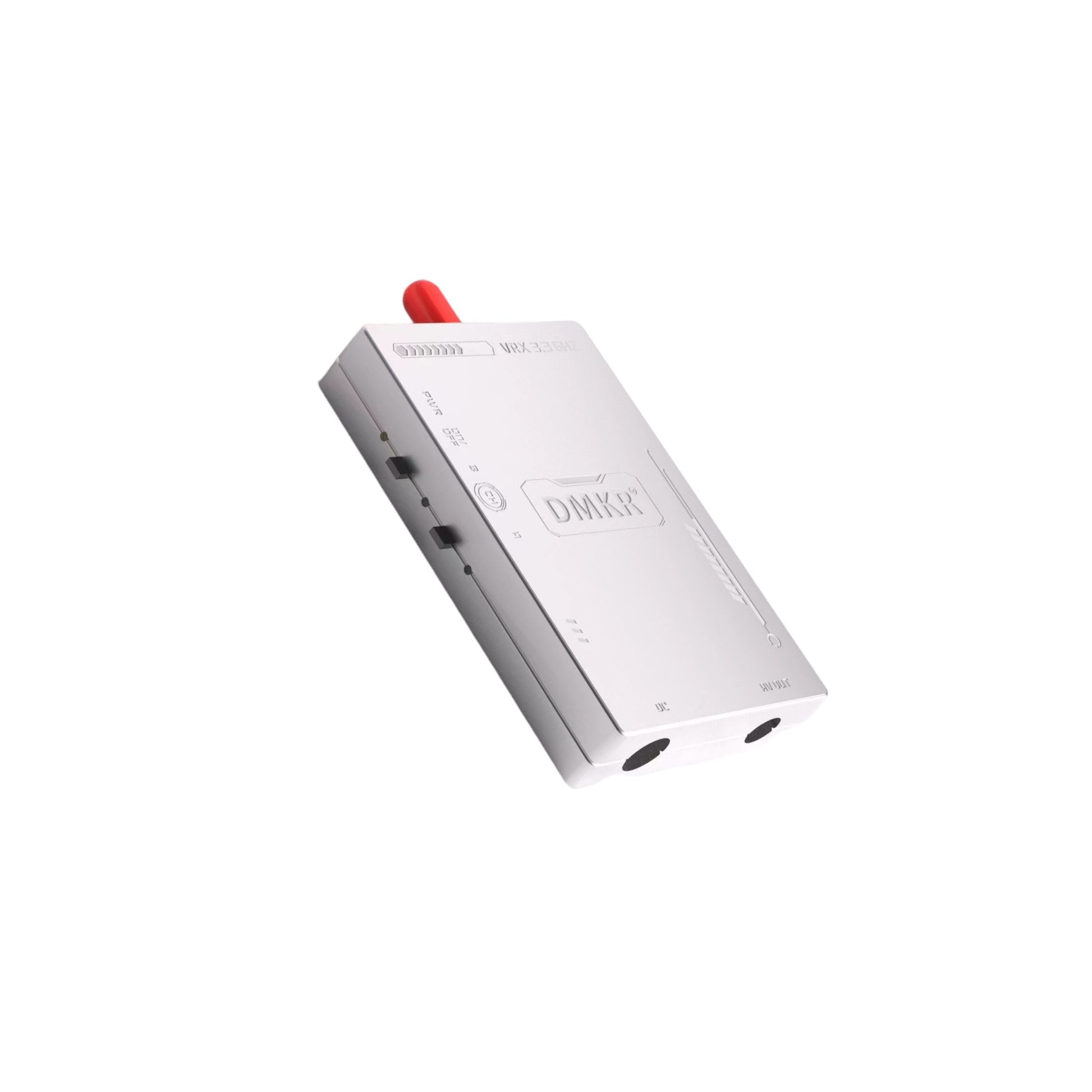

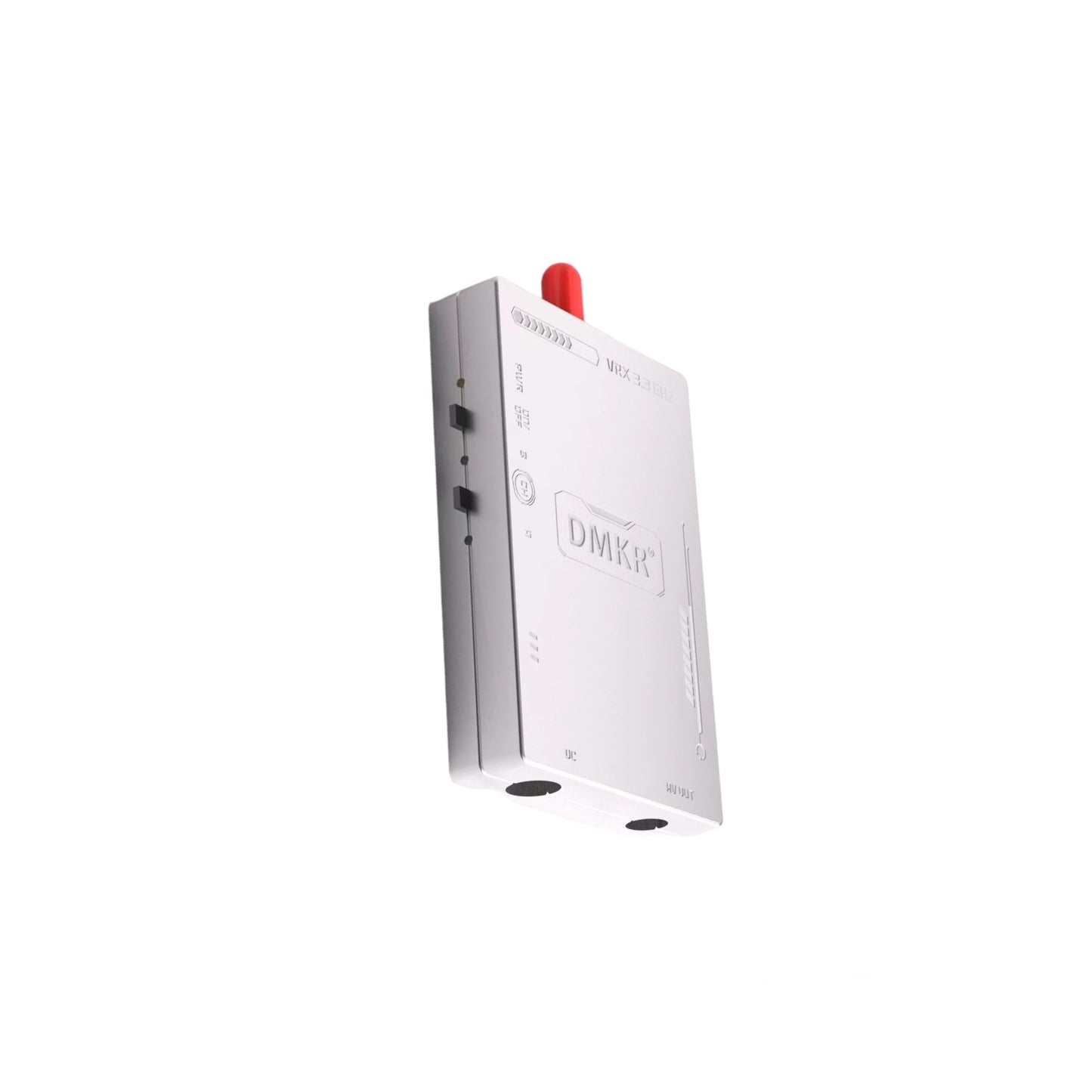

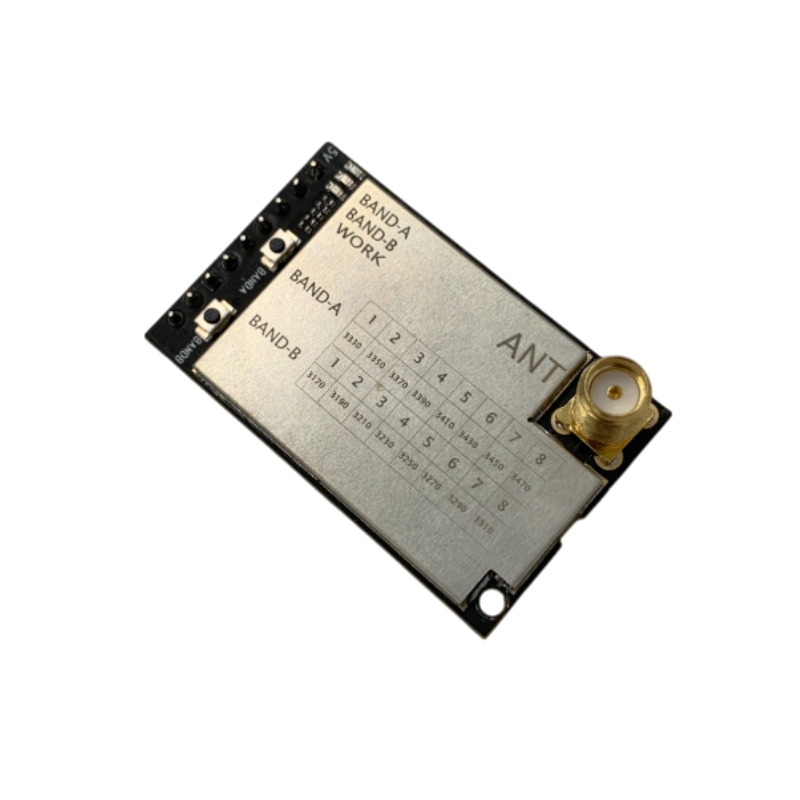

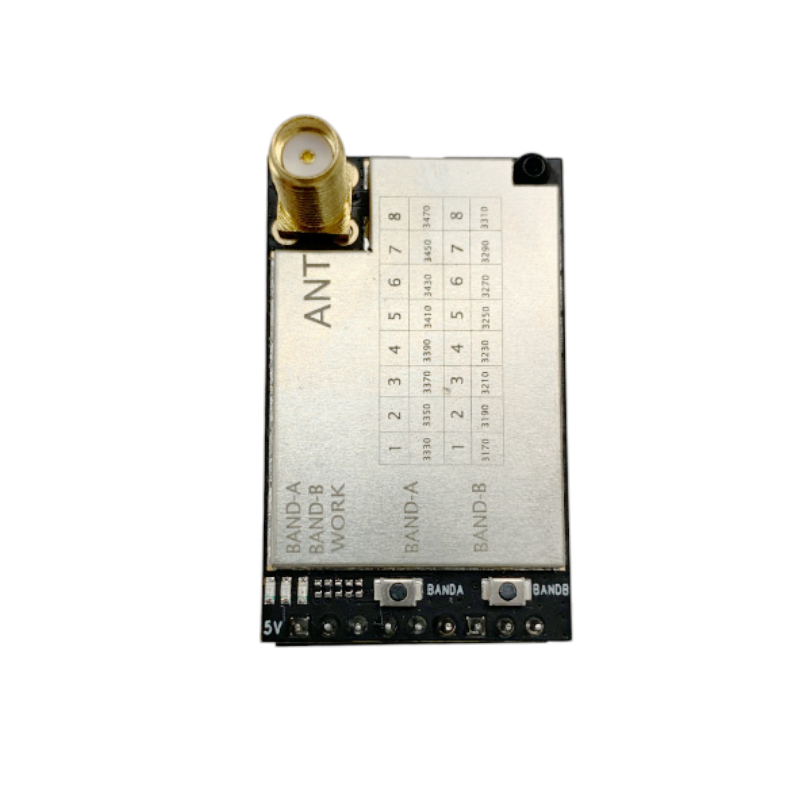

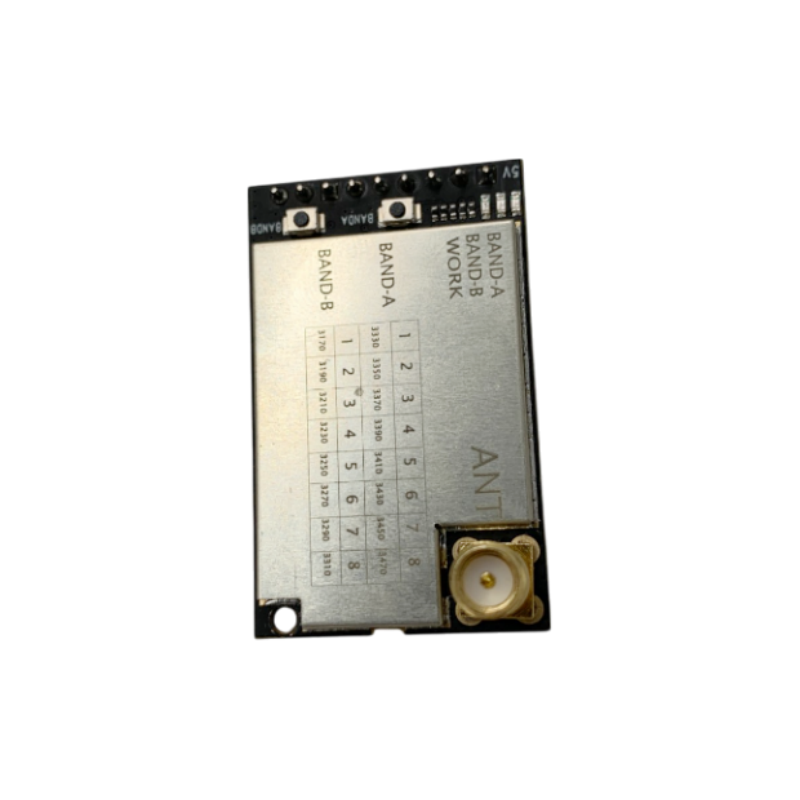

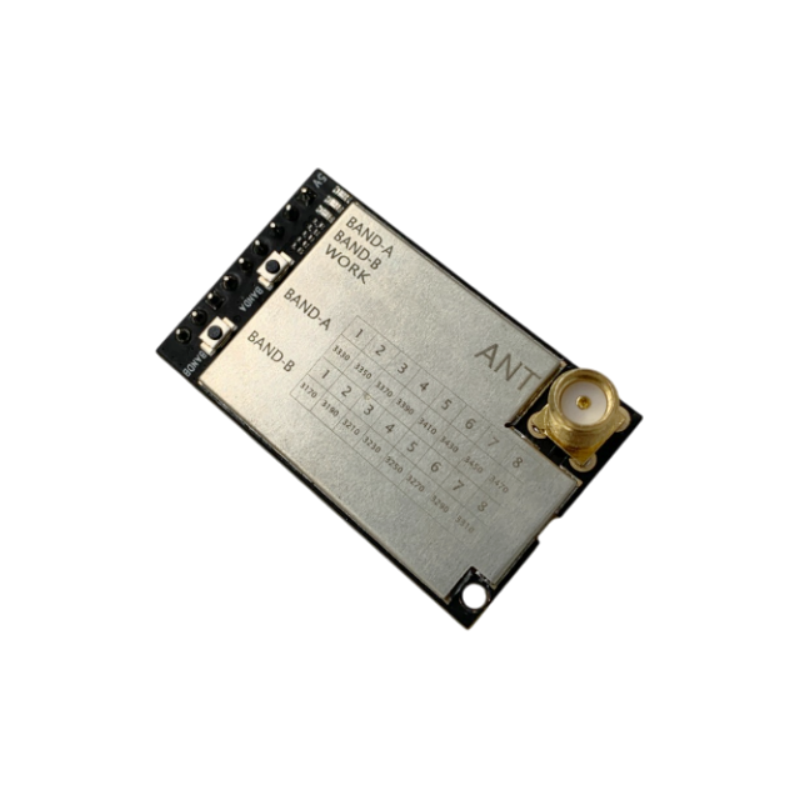

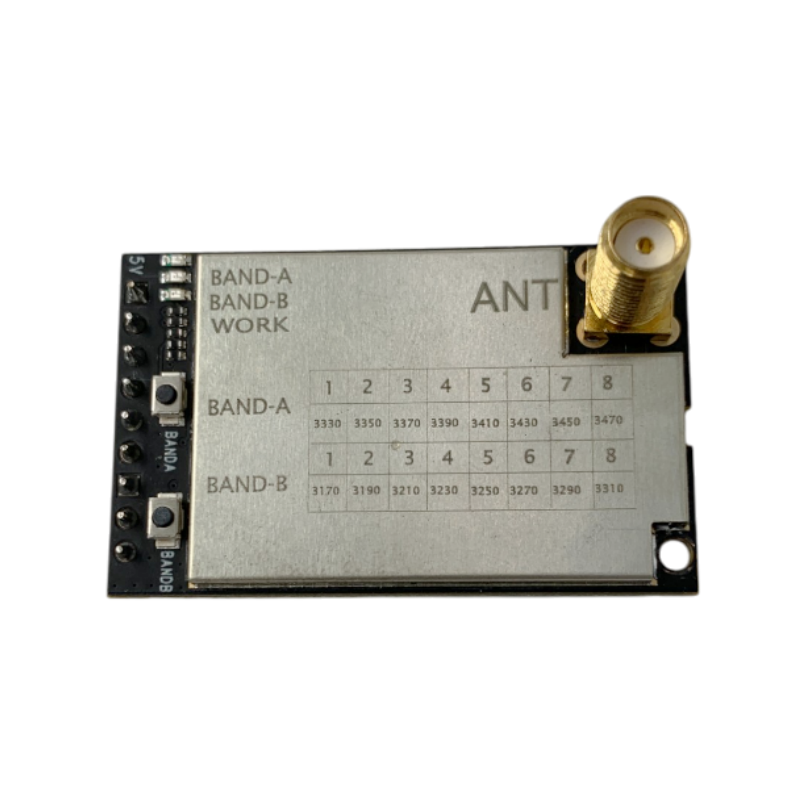

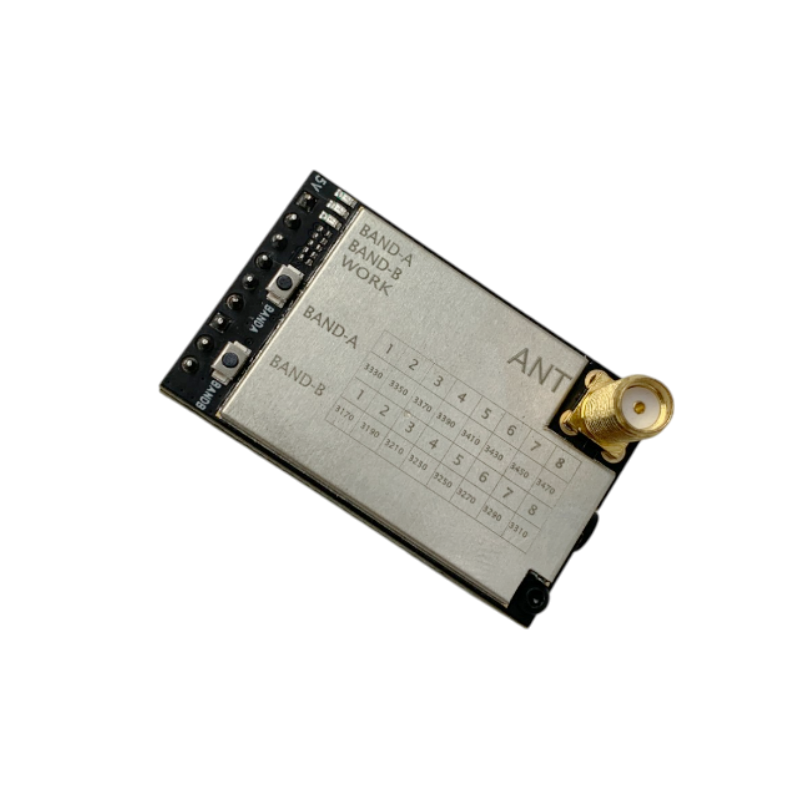

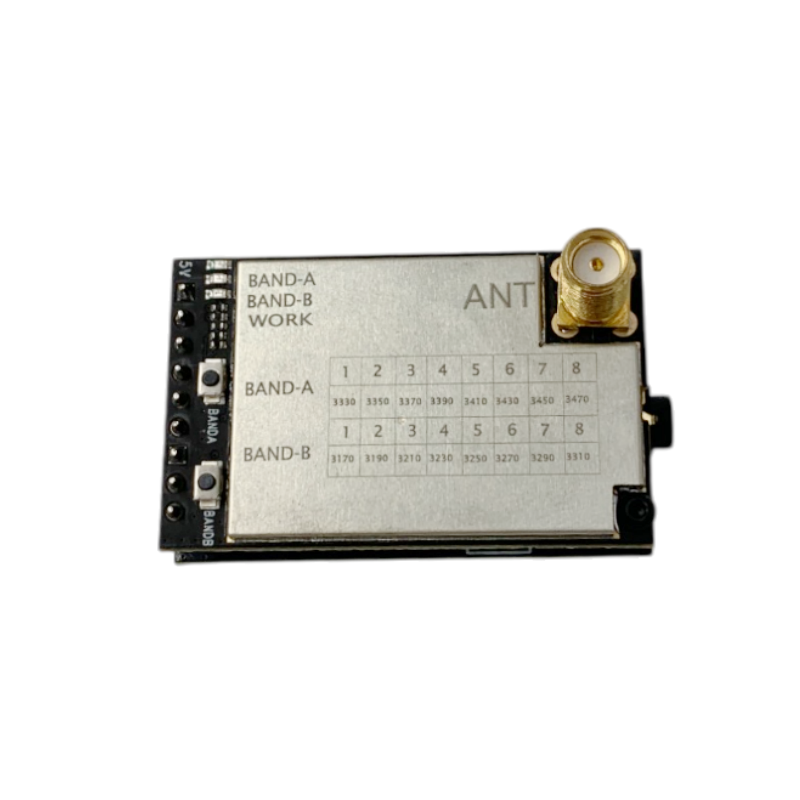

Item: 3.3GHz FPV VRX Video Receiver
SKU: VRX-3G3SE
1. Receiving frequency: 16CH (3170MHz to 3470MHz)
2. Input voltage: DC 7-36V
3. Current Consumption: (105)mA @12V
4. Button control and LED indicators
5. On board regulator output: 5V 1A RX
6. Sensitivity: -95dBm
7. Voltage Standing Wave Ratio: 2:1
8. Demodulation System: FM/PLL ANT.
9. Input Impedance: 50Ω, Typ.
10. Video Output Impedance: 75Ω, Typ.
11. RF Connector: SMA
