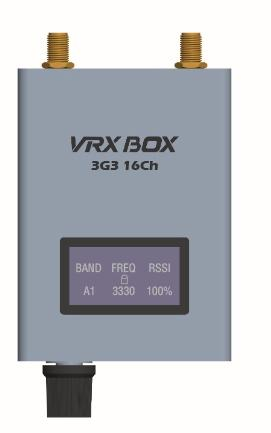

Features
Receiving Frequency: 16CH(3170MHz-3470MHz)
RX ANT A: Receive antenna A port (SMA-F) Impedance 50Ω
RX ANT B: Receive antenna B port (SMA-F) Impedance 50Ω
Encoding switch, rotate left and right to adjust the frequency point. (Press briefly to switch frequency bands; press and hold for 3 seconds to lock the screen, then press again for 3 seconds to unlock.)
DC IN: DC 7-35V input, Max≤36V.
AV OUT: Video output, amplitude 1Vp-p
Specifications
|
No. |
Item |
Function |
|
|
1 |
RX ANT A |
Receive antenna A port (SMA-F) Impedance 50Ω |
|
|
2 |
RX ANT B |
Receive antenna B port (SMA-F) Impedance 50Ω |
|
|
3 |
ENC SW |
Encoding switch, rotate left and right to adjust the frequency point. (Press briefly to switch frequency bands; press and hold for 3 seconds to lock the screen, then press again for 3 seconds to unlock.) |
|
|
4 |
DC IN |
DC 7-35V input, Max≤36V. |
|
|
5 |
AV OUT |
Video output, amplitude 1Vp-p |
|
|
6 |
OLED |
BAND |
Operating frequency band |
|
FREQ |
Operating frequency（MHz） |
||
|
RSSI |
Received Signal Strength Indication |
||
|
|
Screen lock icon |
||
AV Output Definition:

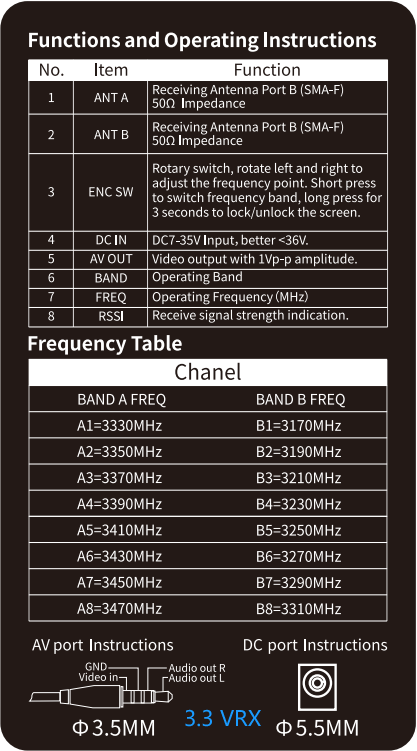

Receiver Operating Channel Table
|
Channel |
|
|
BAND A FREQ |
BAND B FREQ |
|
A1=3330MHz |
A9=3170MHz |
|
A2=3350MHz |
A10=3190MHz |
|
A3=3370MHz |
A11=3210MHz |
|
A4=3390MHz |
A12=3230MHz |
|
A5=3410MHz |
A13=3250MHz |
|
A6=3430MHz |
A14=3270MHz |
|
A7=3450MHz |
A15=3290MHz |
|
A8=3470MHz |
A16=3310MHz |
Receiver Parameters
|
Item |
Min. |
Median |
Max. |
Test Conditions |
|
Freq |
3170MHz |
3330MHz |
3470MHz |
|
|
Input Impedance |
50Ω |
Antenna port impedance |
||
|
Operating Voltage |
DC 7~ 35V |
|
||
|
Operating Current |
0.18A |
Power supply 12V Data |
||
|
Receiver Sensitivity |
-95dBm±2 |
|
||
|
Video Amplitude |
1Vp-p |
|
||
|
Max. Input |
10dBm |
Max. Input Wattage |
||
|
Weight |
120g |
|
||
|
Dimension |
83*61*25mm |
|
||
|
Operating Temperature |
-20℃ |
25℃ |
75℃ |
|
|
Operating Humidity |
10% |
50% |
95% |
|
|
Storage Environment |
-40℃ |
25℃ |
90℃ |
Storage Temperature |
Packing Including:
1 x VRX box
2 x antennas
