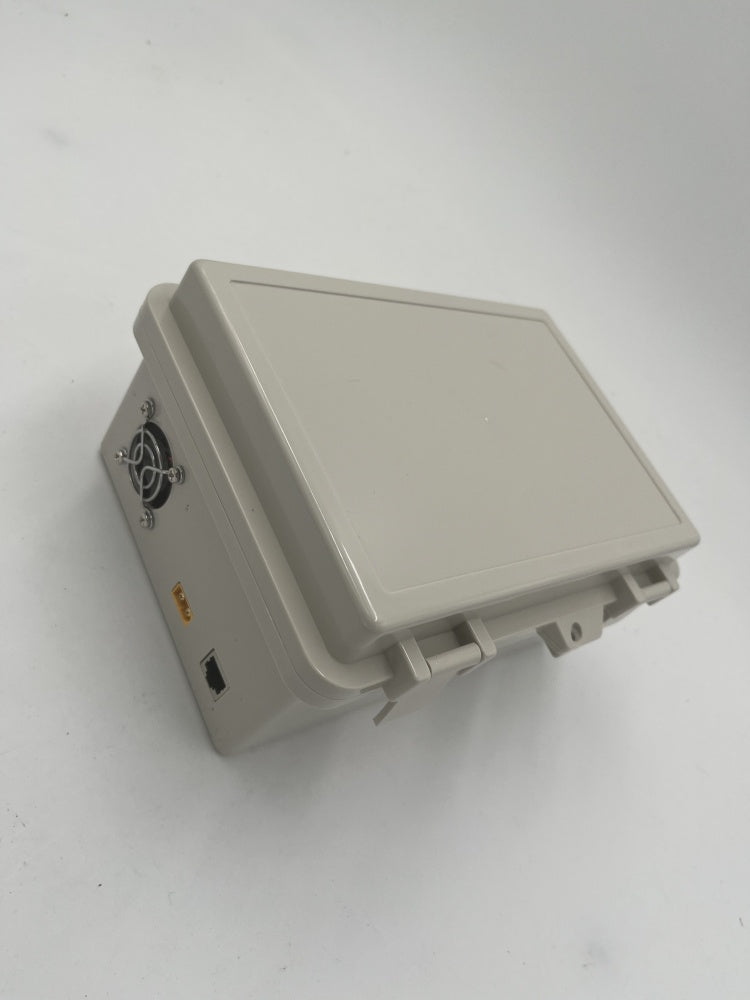

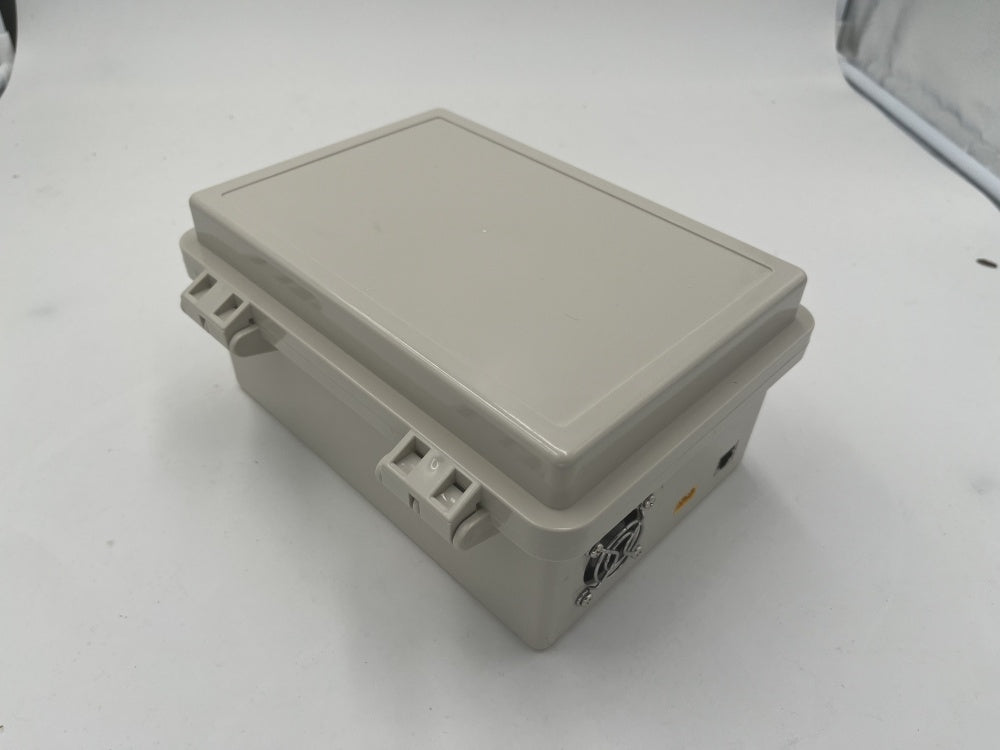

I. Port Introduction
DC PS: Power input interface (DC10V-35V)
WAN：Network cable plug-in interface (RJ45)

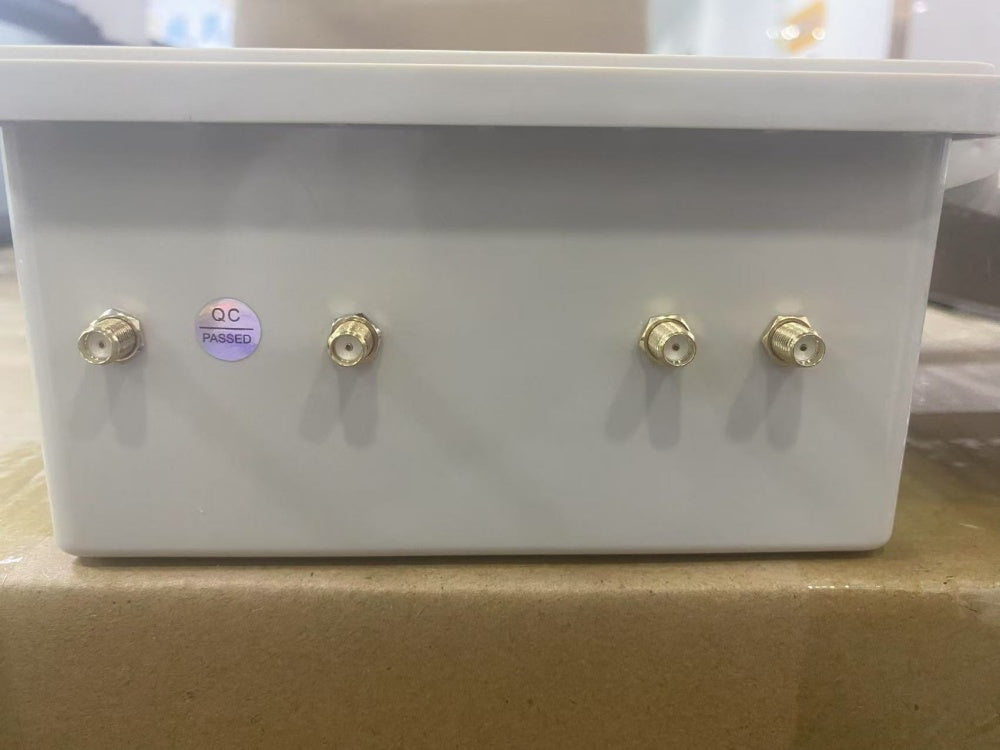

RX-A: Receiver A Port (SMA-F)
RX-B: Receiver B Port (SMA-F)
TX-A: Transmitter A Port (SMA-F)
TX-B: Transmitter B Port (SMA-F)
II. System Structure

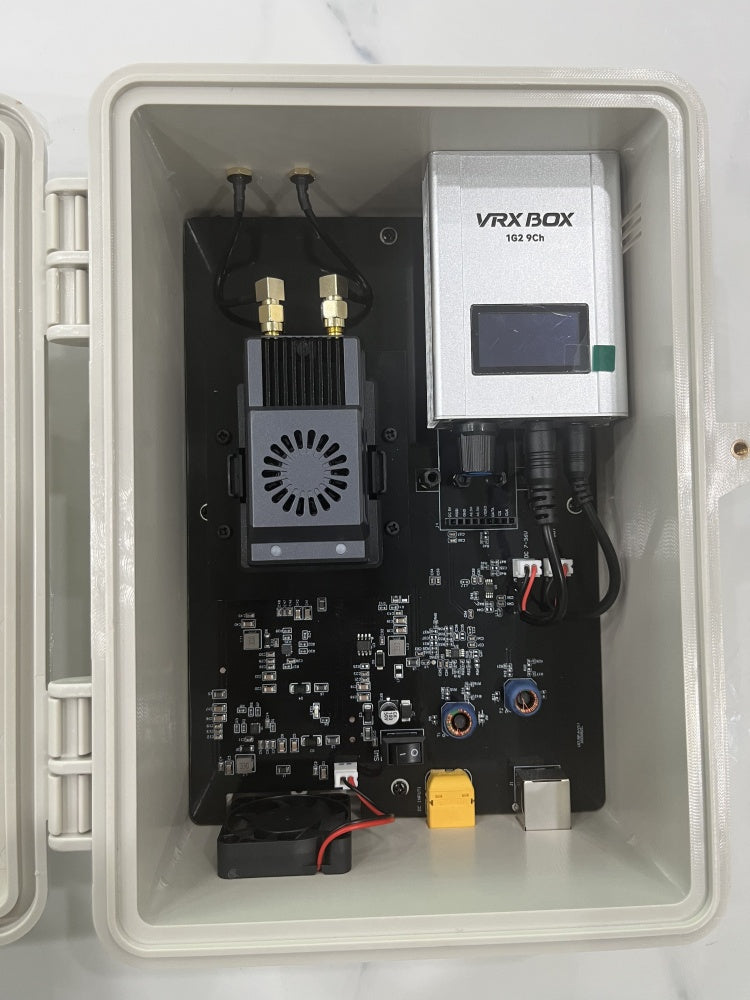

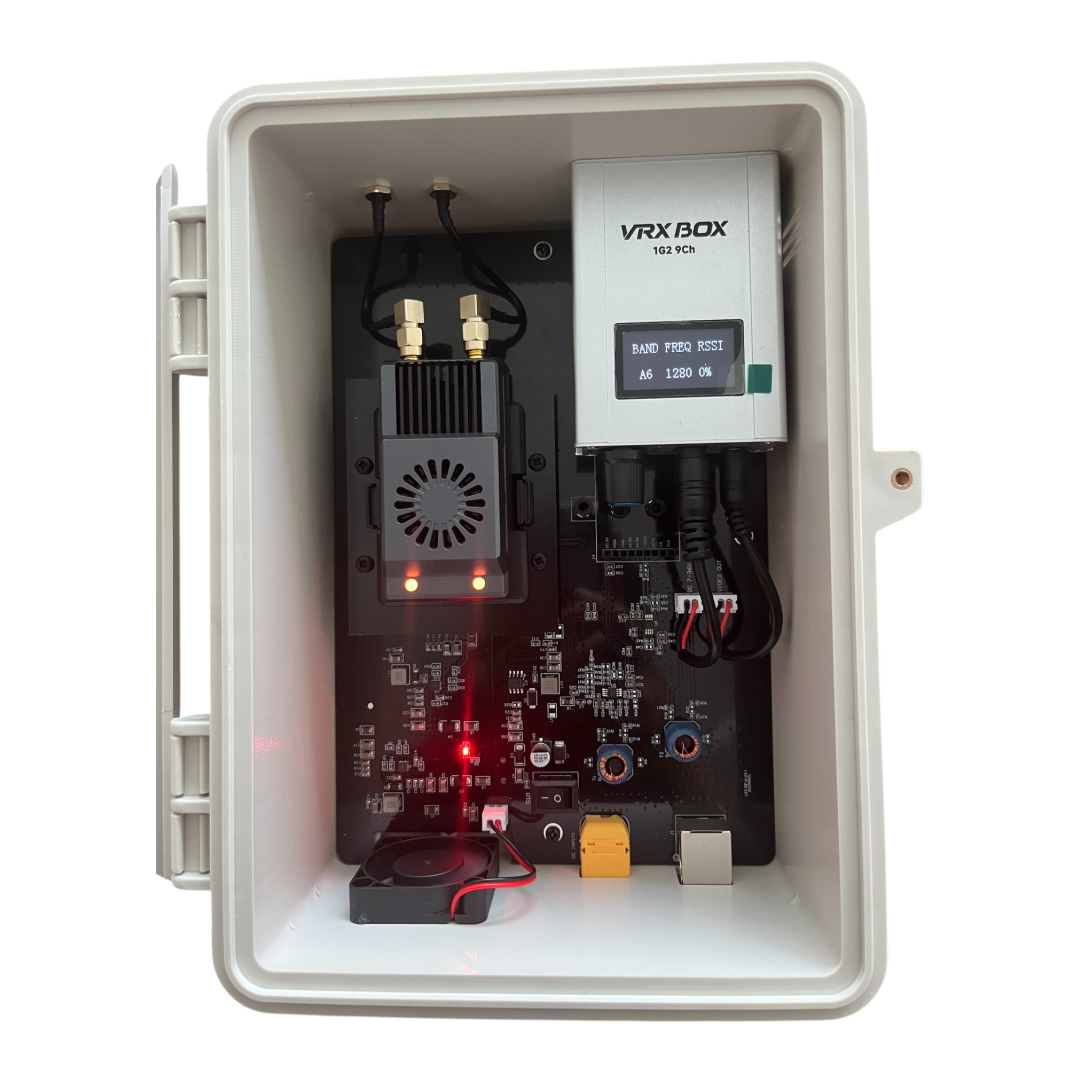

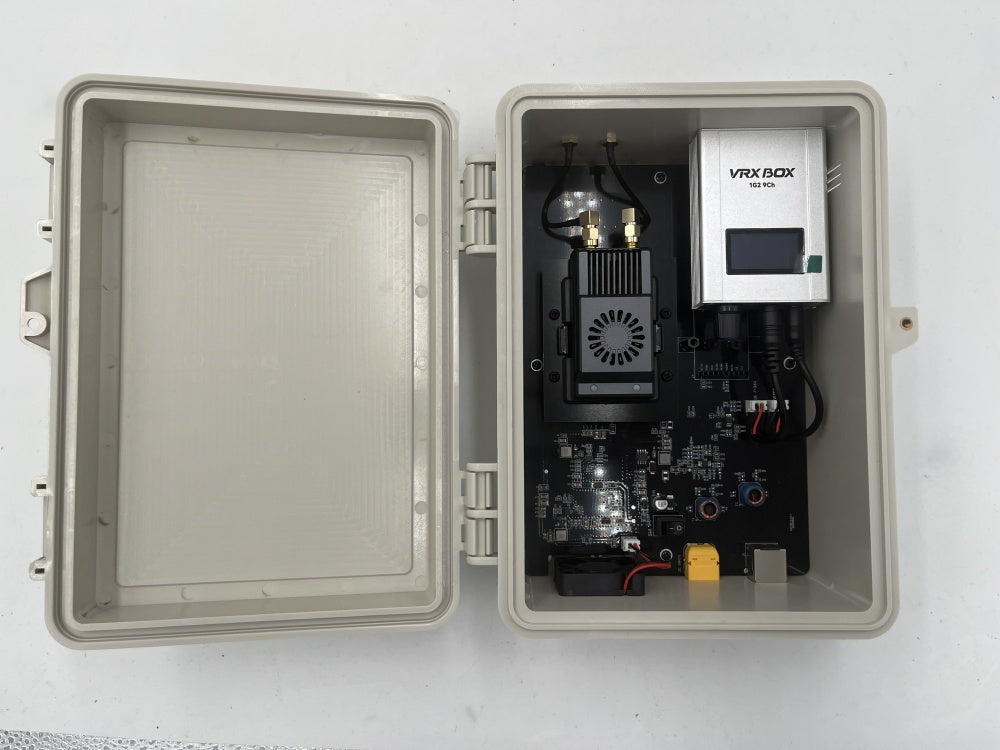

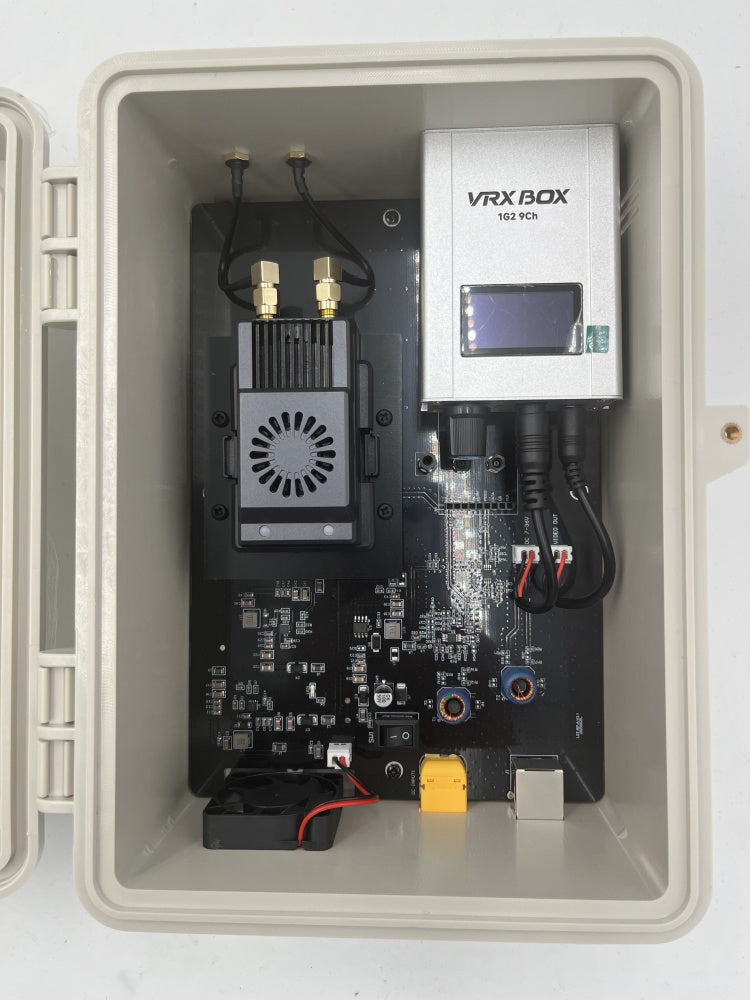

Flight control relay system, it consists of repeater main unit, HF head, receiver module, power supply, HF head transmitting fixed antenna and receiving directional antenna, super category 5 network cable, video cable, monitor, flight controller system. The “TX” end is connected to the transmitting directional antenna, and the “RX-A, RX-B” ends are connected to the receiving directional antenna, as shown in the figure below.
When installing, pay attention to the distance between the receiving and transmitting antennas, in any case, you must ensure that the vertical distance between the transmitting antenna and the receiving antenna is greater than 60 centimeters or more, to prevent system interference.
III. Technical Specification
|
SKU |
LST-RP-V2.0 |
|
Input Voltage |
DC 10~35V |
|
Power Interface |
XT60 |
|
RF port |
SMA-F |
|
Controller Radiomaster |
Customer optional |
|
Video Transmitter & Receiver |
Customer optional |
|
Transport Network Cable |
Advise：Ultra Category 5 (Pure Copper) Cable |
|
Transport Distance |
<300m |
|
Video Cable |
3.5mm 四段 AUX 线 |
|
Environmental Temperature |
-20~70℃ |
|
Weight |
0.95kg |
|
Size |
240*170*110mm |
Note:
The receiver module only can use ours (1.2G, 1.7G, 3.3G, 5.8G). The high frequency head can be replaced to other brands.
Before selecting the High Frequency head, please contact our sales to see if it can be matched.
If the image is not displayed properly when linked to the FPV goggle or monitor, the wire sequence needs to be changed:
