JaribeL Mini FPV Monitor Specification:
|
Model |
jaribel-5804 |
||||||||
|
Name |
Mini FPV MONITOF |
||||||||
|
LCD Screen |
Screen : 3.0 Inch IPS LCD |
||||||||
|
Resolution: 480*320 |
|||||||||
|
Display Ratio: 16:9 |
|||||||||
|
View Angle: 360 ° without dead angle |
|||||||||
|
Brightness: 500cd/m² with high brightness backlight LED |
|||||||||
|
Video delay |
Video time-delay less than 20ms |
||||||||
|
Interface |
Antenna |
RP-SMA male |
|||||||
|
USB |
To charge the battery |
||||||||
|
AV Jack |
External video signals input or internals AV signal output |
||||||||
|
Languages |
English and Chinese |
||||||||
|
Power Supply |
Power adapter: DC5V/1A (USB interface) |
||||||||
|
Battery:
3.7V/800mAh,Each full charge revive around 2hr working time |
|||||||||
|
Power Consumption:
*The device operating current of 360~400mA at 3.7~4.2V; *Built-in battery maximum charge current of 800mA; |
|||||||||
|
Wireless |
Frequency Table(MHz) |
||||||||
|
|
CH1 |
CH2 |
CH3 |
CH4 |
CH5 |
CH6 |
CH7 |
CH8 |
|
|
Band A |
5865 |
5845 |
5825 |
5805 |
5785 |
5765 |
5745 |
5725 |
|
|
Band B |
5733 |
5752 |
5771 |
5790 |
5809 |
5828 |
5847 |
5866 |
|
|
Band E |
5705 |
5685 |
5665 |
5645 |
5885 |
5905 |
5925 |
5945 |
|
|
Band F |
5740 |
5760 |
5780 |
5800 |
5820 |
5840 |
5860 |
5880 |
|
|
Band R |
5658 |
5695 |
5732 |
5769 |
5806 |
5843 |
5880 |
5917 |
|
|
Dimensions and weight |
Body size:8.4cm * 5.3cm * 1.4cm Packing size: 12cm * 11cm * 25cm |
||||||||
|
Body weight: 65g(not included antennas) Package weight: 167g |
|||||||||
Jaribel Mini FPV Monitor Features:
-
Small size and light weight;
-
Low power consumption, Working current 360~400mA;
-
RaceBand 40 channel, Auto-Searching;
-
3.0 Inch 480*320 dot high brightness LCD screen;
-
Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
-
Built-in 3.7V/800mAh high-capacity Li-ion polymer Battery;
-
Universal USB charging interface;
-
Real-time video return, Very low time-delay;
-
Bilingual menu in support of Chinese and English;
-
Support external video signal input;
-
Support AV signal output (Connect external DVR);
-
It can be used as a receiver for “DJI” and other video glasses. With interest screen function;

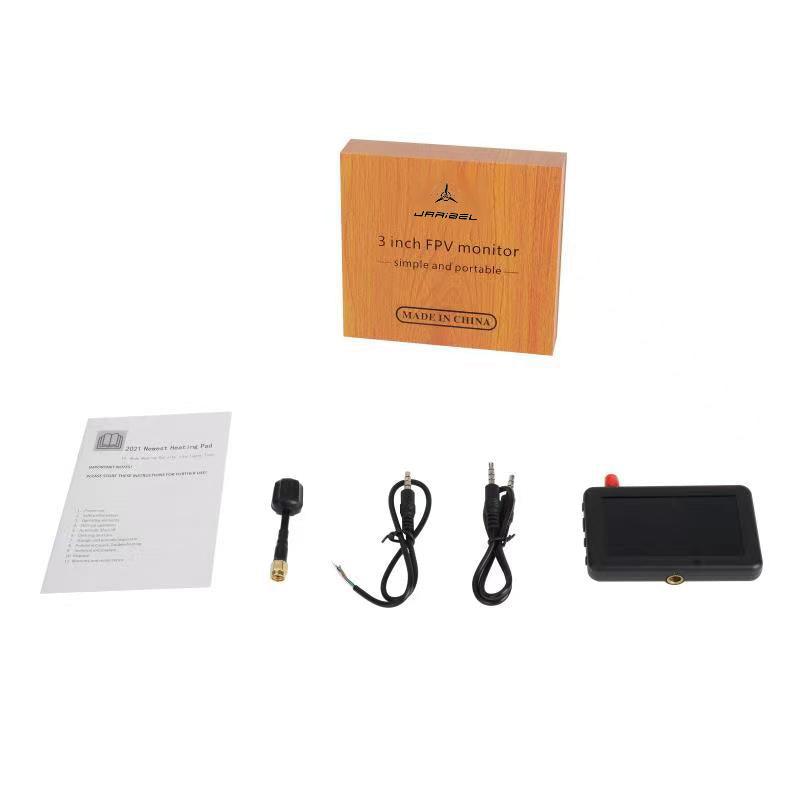

Package Included:
1 x jaribel 5.8G FPV Monitor with 40CH 3.0 Inch LCD Display 16:9 NTSC/PAL Auto Search Video Recording For FPV Drone
